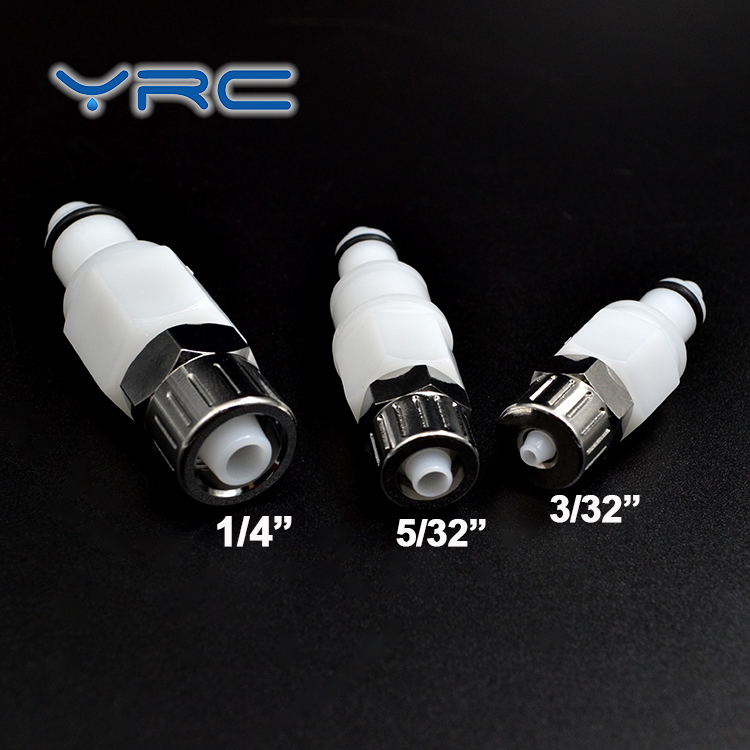

KSP Series

  KSP series is the most mature and wildly used quick couplings. In the medical devices and beauty apparatus, the KSP series quick couplings plays an irreplaceable roles. Featuring of the metal thumb latch is easier to use than ball-and-sleeve designs. And more tubing ID for choosing than the push-fit fittings.

Specification:

Pressure： Vacuum to120psi , 0.8MPa

Temperature ：-40℃～100℃

Materials:

 Main components and valves: POM

         Thumb latch & Spring：316 stainless steel

         O-ring：EPDM

Nuts and luck nuts：Chromed plated brass

Suitable Hose ID: 1/16"~~3/8" ID (1.6mm~~9.5mm ID)

Standard Color： Nature white
